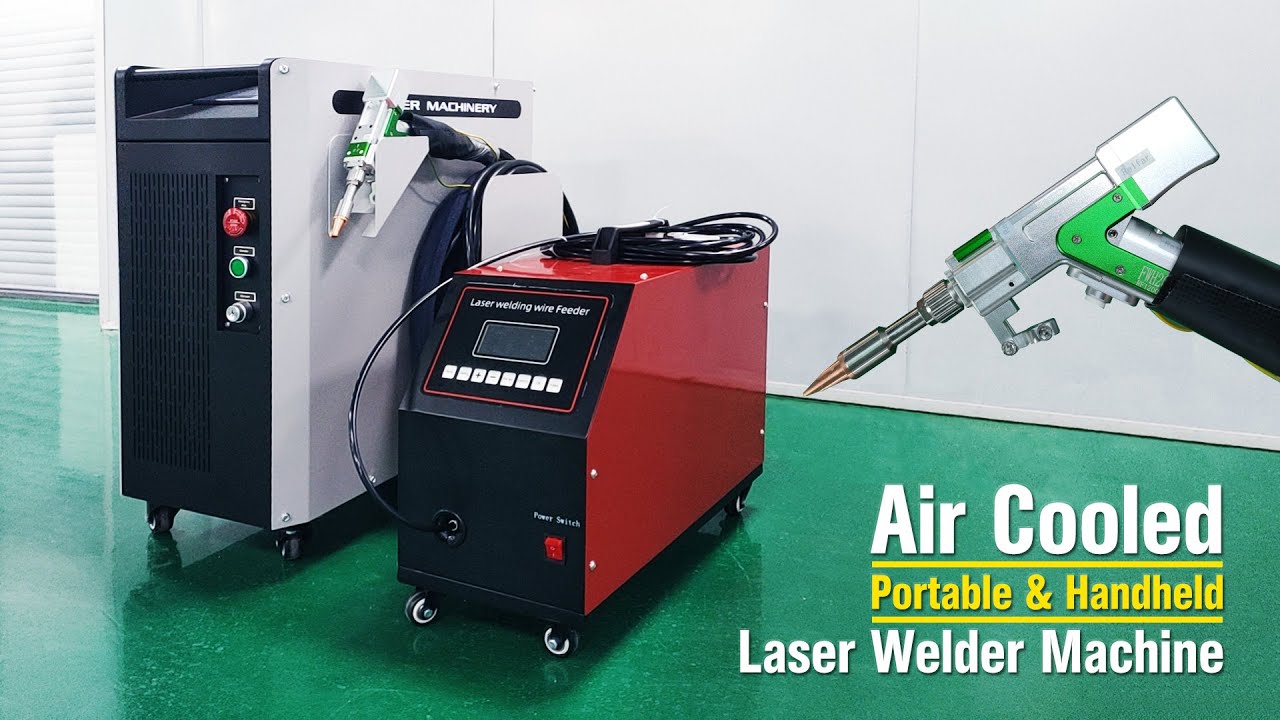

Need an affordable welding machine for precision metal joints? Review this beginner-friendly air-cooled portable laser welder with handheld laser welding gun.
An air-cooled portable laser welder with a handheld welding gun is a highly efficient and compact tool designed for precision welding. It combines the power of laser welding with the convenience of portability, making it an ideal choice for on-site repairs or small workshops. The air-cooled design uses ambient air for cooling, eliminating the need for complex water cooling systems, making it easier to maintain, and reducing the overall weight.
This type of welder comes with a handheld welding gun that allows users to control the laser beam with precision. The ergonomic design of the gun ensures ease of use, even in tight or hard-to-reach spaces. It’s perfect for applications requiring quick and clean welds, such as automotive repairs, electronics, and small metal fabrication projects.
Despite being compact and portable, this air-cooled laser welder maintains high performance, providing strong, reliable welds without the hassle of extra cooling equipment. Its versatility and ease of use make it a go-to option for professionals and hobbyists alike.

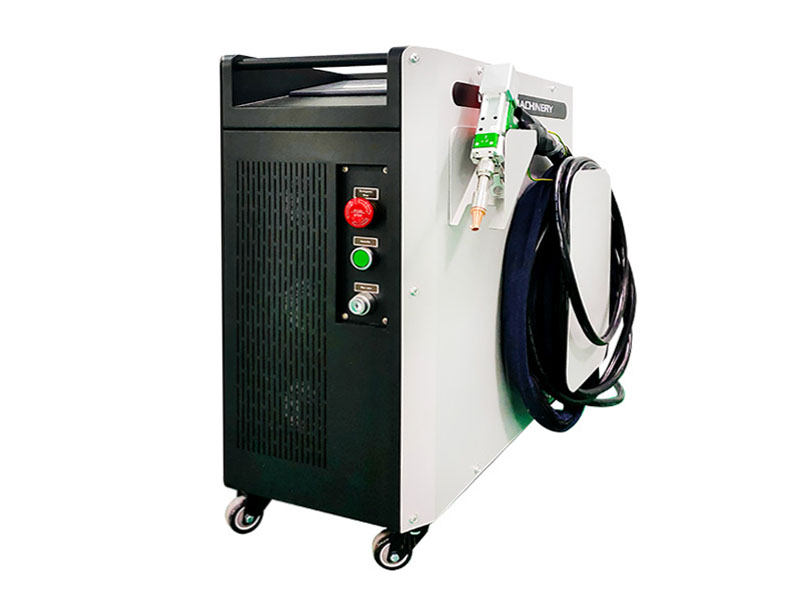

The air-cooled handheld laser welder features a compact and lightw8 design, making it extremely portable.
The laser beam is delivered to the workpiece using a fiber optic cable. The fiber optic cable is flexible and easy to move, allowing the laser beam to be directed precisely where it is needed.
The laser beam is focused to a very small point, allowing for high-precision welding. The focus can also be adjusted to different depths, allowing for the welding of materials of varying thicknesses.
The smart control panel comes with a user-friendly interface for quick and simple adjustments, allowing users to manage their welding projects in a single setup.
Copper nozzles for different welding needs are designed to provide greater flexibility to meet a variety of welding angles, materials, and effects.
| Brand | STYLECNC |
| Model | LW1500A |
| Laser power | 1500W |
| Cooling method | Air-cooling |
| Laser wave length | 1080nm |
| Fiber length | 10 meter |
| Operate mode | Continuous |
| Spot adjustment range | 0~5mm |
| Working environment temperature range | 15~35 ℃ |
| Humidity range of working environment | < 70% No condensation |
| Welding thickness recommendations | 0.5-3mm |
| Working voltage | 220V/ 2Phase |
| Gas assist | Nitrogen/Argon |
The best laser generator with independent intellectual property rights.
Low power consumption, maintenance-free, and easy assembly, make it a perfect laser source for industrial laser welding, cutting, and cleaning.
Lightw8 and easy to use.
The laser welding gun adopts double protective lenses, and the inner lens is designed to be pulled out, which is easy to replace and the product is stable and reliable.
Humanized operation panel, hand touch control, full functions, including welding, cleaning, cutting working modes, dedicated laser source data monitoring page, technical information, and support for more than 20 languages, to meet more customer needs.

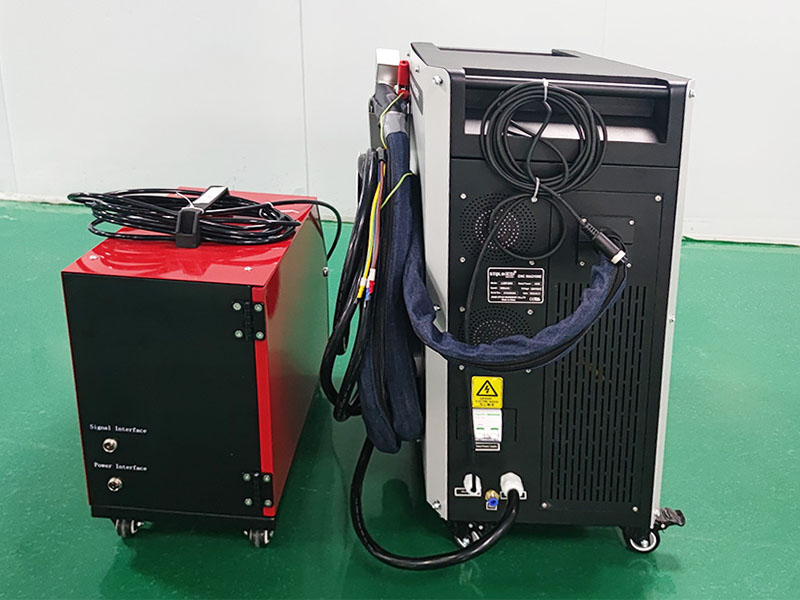

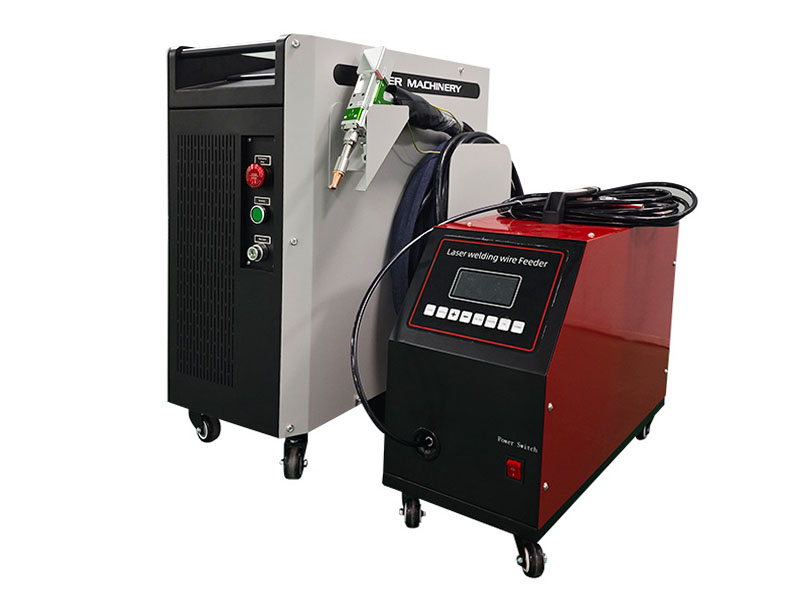

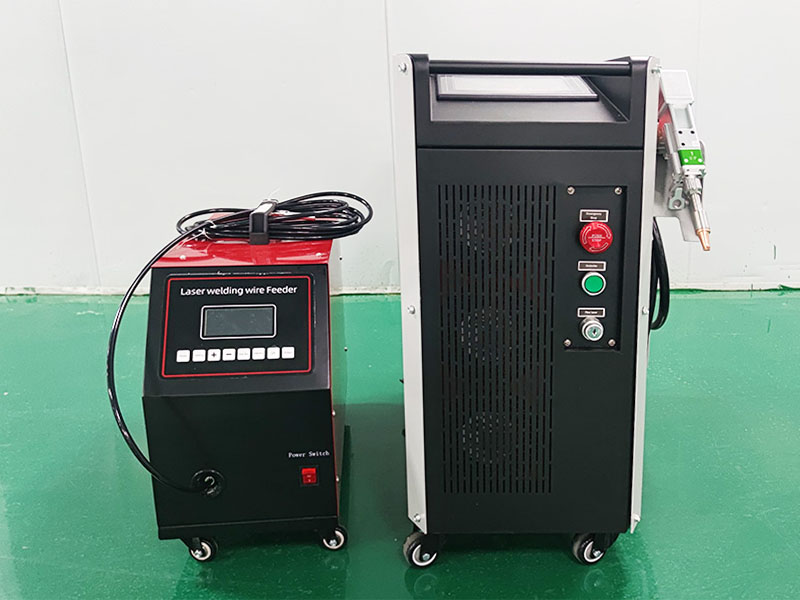

When the welding gap is large or a stronger welding strength is required, a wire feeding device is required.
• 0.8/1.0/1.2/1.6 and other specifications of welding wire can be used.
• The wire feeding speed is adjustable, convenient, and fast.
Air-cooled fiber lasers can weld a variety of metals, including but not limited to stainless steel, carbon steel, aluminum, titanium, copper, and nickel alloys. The final process and effectiveness depend on the specific metal properties, thickness, and joint type.
Air-cooled laser welding machines are used in complex and irregular welding processes in industries such as cabinets, kitchens, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel home furnishings.

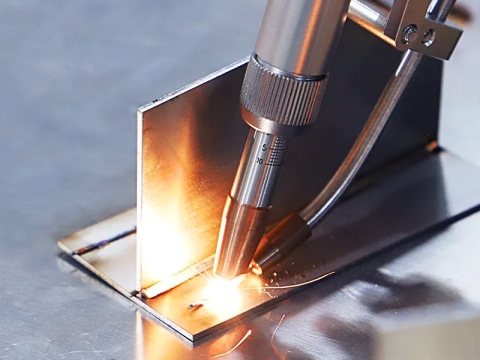

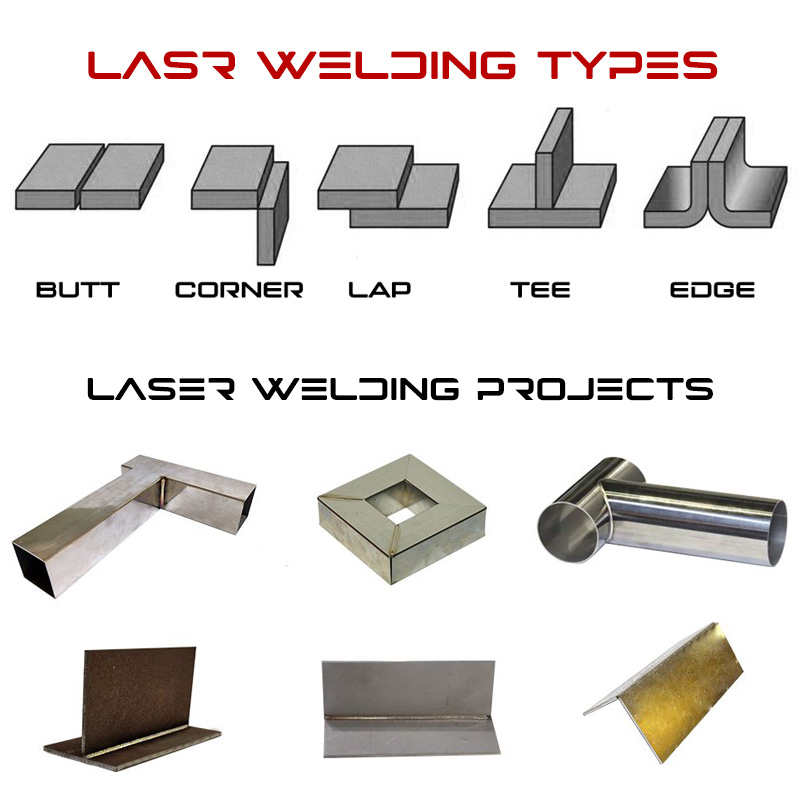

Air-cooled laser welders can be performed at various angles, making them versatile for different metal joint types, including Butt, Lap, Corner, Tee, and Edge Joints. The flexibility in positioning allows for the effective welding of complex shapes and profiles.
Selecting the right air-cooled portable laser welder for your specific needs can significantly impact the quality and efficiency of your projects. Factors such as power, portability, ease of use, and durability play an essential role in making an informed decision. Here are some key considerations to keep in mind when choosing the best laser welder for your tasks.
The power of the laser welder determines its welding capacity and performance. If you’re working with thin materials or need occasional welding, a lower-power model (around 100W to 200W) might suffice. However, for thicker materials or heavy-duty applications, consider welders with higher power outputs for stronger, faster results.
Portability is a of the main advantages of air-cooled laser welders. When choosing a model, ensure the size and w8 align with your intended use. If you need a welder for on-site projects or confined spaces, opt for a lightweight, compact design. The right balance between power and portability is key to convenience.
While air-cooled laser welders eliminate the need for a water-cooling system, they still require efficient heat dissipation for continuous use. Look for models that offer adequate airflow and cooling mechanisms to prevent overheating. Proper cooling ensures the welder can operate longer without performance degradation or damage.
Since you’ll be holding the handheld welding gun for extended periods, the ergonomics of the gunplay a crucial role. Choose a model with an easy-to-grip, well-balanced handle that reduces strain and provides better control. This will enhance your comfort and precision during the welding process, especially in intricate tasks.
The durability of your laser welder is essential, especially if you plan to use it frequently. Look for machines made with high-quality, durable materials that can withstand the rigors of regular use, especially in tough environments. Strong build quality ensures the longevity and consistent performance of the welder over time.
The LW1500A is a remarkable addition to my repair shop for metal joining jobs. This laser welder is portable with lightweight design, easy to move and use. Powerful enough to create clean, strong welds on steel and aluminum. However, the initial cost is higher compared to ordinary welders, and requires safety precautions, such as protective eyewear. Overall, this tool is excellent for professionals seeking versatility and quality in welding.
