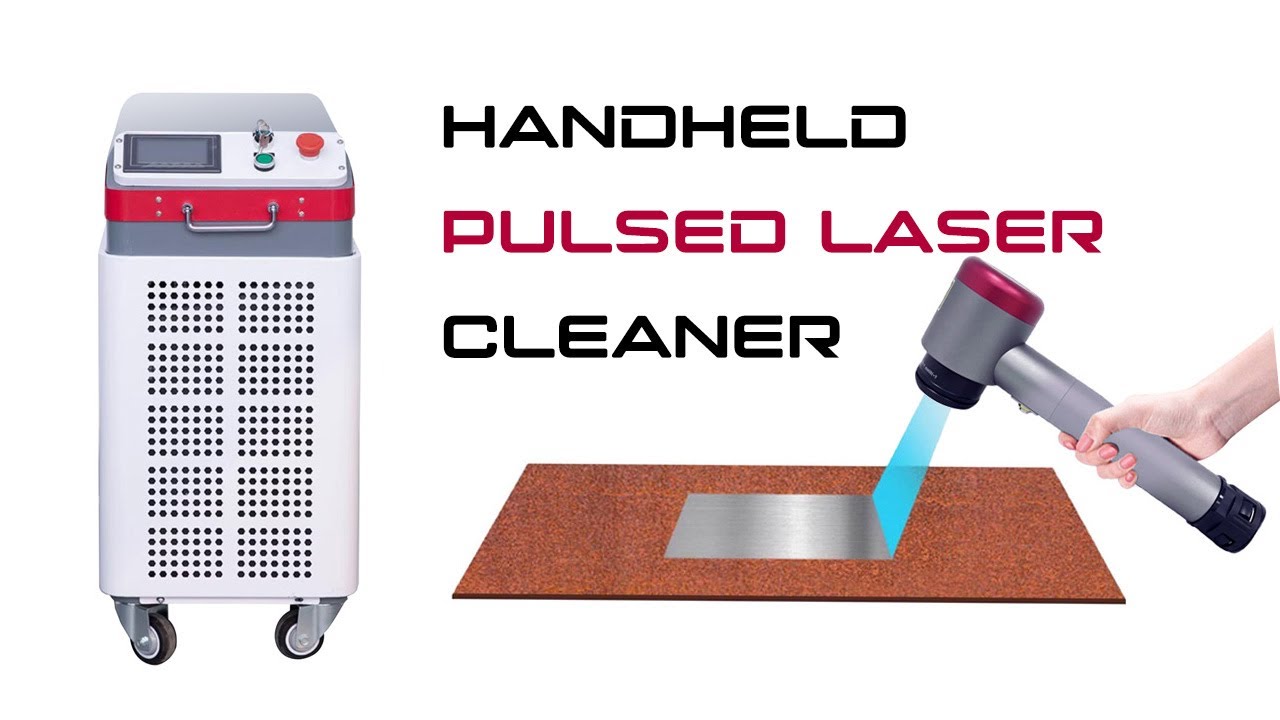

Looking for an affordable fine cleaner for all? Take a look at this beginner-friendly portable handheld pulsed laser cleaning machine that can meet every need.
A pulsed laser cleaning machine is a fine cleaner that utilizes high-intensity laser pulses to remove contaminants, such as rust, paint, and dirt, from surfaces without damaging the underlying material. The laser energy is precisely controlled, allowing for efficient and non-abrasive cleaning of various substrates, including metal, wood, stone, and ceramics. This technology works by delivering short bursts of energy that rapidly heat and vaporize the unwanted substances, allowing for effective and precise cleaning. Pulsed laser cleaning is considered environmentally friendly since it typically requires little to no chemicals, reduces waste, and minimizes water usage, making it popular in industries such as metalworking, heritage conservation, marine, and automotive, and has become a good partner for repair and renovation shop owners.
• Non-contact cleaning, no damage to the substrate.
• Fine cleaning, precise positioning for selective cleaning.
• No chemical cleaning fluid is required, no consumables, safe and environmentally friendly.
• Easy to use for beginners with a dedicated control panel.
• Good portability with a handheld laser cleaning gun.
• Combined with a robot to achieve fully automatic cleaning.
• Ergonomic design to reduce the labor intensity of operation.
• Stable laser cleaning system suitable for long-term operation.
• Low cost of use due to being almost maintenance-free.
• Thickened sheet metal structure design, strong and resistant to deformation.
• Small size, easy to carry in the car for outdoor cleaning.
• STYLECNC independently developed an upgraded version of the handheld laser cleaning gun, which can work continuously without burning the lens. Lightw8 and easy to use. Different lenses can be selected to obtain different cleaning ranges.
• Red light assisted positioning, precise control, and easy operation. Double-click the switch to start cleaning, avoid accidental touch, and operate more safely.
• Interactive control system.
• Multi-language system support.
• 8 types of beam shape controllers for any cleaning environment.
• English user manual, training, and operation video are included with the machine.
• JPT fiber laser generator - low power consumption, maintenance-free, and easy to assemble - an ideal laser source for industrial laser cleaning.
• Air-cooled cleaning, no chiller required.
• Neat electronic wiring, complete line number, easy troubleshooting.
| Brand | STYLECNC | ||
| Model | LCP100 | LCP200 | LCP300 |
| laser power | 100W | 200W | 300W |
| M2 | < 2 | < 2 | < 5 |
| Max pulsed energy | 1.5mJ | 5mJ | 5mJ |
| Frequency adjustable range | 1 ~ 4000kHz | 1 ~ 3000kHz | 1 ~ 4000kHz |
| Pulse width | 2 ~ 500ns | 13 ~ 500ns | 2 ~ 500ns |
| laser wave length | 1064nm | ||
| Fiber length | 5 meter | ||
| Cooling way | Air cooling | ||
| Power range | 0 ~ 100% | ||
| Working environment temperature range | 0~40 ℃ | ||
| Humidity range of working environment | < 70% No condensation | ||
| Working voltage | 220V/ 2P | ||
Pulsed laser cleaning machines are widely used in various industries such as automobile manufacturing, electronic equipment, aerospace, semiconductor processing, home furnishings, kitchenware, and bathrooms. They can effectively remove various pollutants such as paint, oxides, and welding slag, and are used for cleaning objects with high surface requirements. Since the pulsed laser cleaner features high energy and short action time, the cleaning speed is slow, which is ideal for cleaning small areas and thicker stains, especially for paint stains with strong adhesion. Pulse lasers can better control heat input and prevent high temperature and micro melting of the substrate.
Removing rust and paint with a handheld pulsed laser cleaner is a cutting-edge solution for industries and professionals who need a precise, efficient, and eco-friendly method. Unlike traditional abrasive techniques, laser cleaning uses high-intensity light pulses to break down surface contaminants without damaging the underlying material. Follow these key steps to achieve optimal results.
Prepare the Work Area
Before starting, ensure the workspace is clean, well-ventilated, and free from unnecessary obstacles. Laser cleaning doesn’t produce hazardous waste, but it’s important to wear protective gear, including laser safety goggles and gloves, to prevent accidental exposure. Position the workpiece securely to avoid movement, ensuring a smooth and even cleaning process.
Adjust the Laser Settings
Different materials and contamination levels require specific laser power and pulse frequency settings. Higher power levels work best for thick rust layers, while lower settings are ideal for delicate surfaces. Experimenting with small adjustments can help fine-tune the efficiency and precision of the cleaning process.
Test on a Small Area
Before treating the entire surface, perform a test on a small, inconspicuous section. This helps determine the optimal speed and intensity needed for effective rust or paint removal without altering the base material. Testing also helps identify any potential issues, such as overheating or material discoloration, before working on a larger scale.
Move the Laser at a Consistent Speed
Hold the handheld laser cleaner at a steady angle and move it evenly across the surface. Slow, consistent passes ensure thorough cleaning, while erratic movements may result in uneven removal. Keeping the laser at an appropriate distance from the surface enhances efficiency and prevents accidental surface damage.
Monitor the Cleaning Process
Observe the reaction of the surface as you work. If the laser leaves any residue or incomplete cleaning spots, adjust the settings or make another pass. Pay attention to color changes and material reactions to ensure the best possible cleaning results.
Perform Post-Cleaning Inspection
Once the cleaning is complete, inspect the surface for any remaining contaminants. If necessary, repeat the process with adjusted settings. Properly store the laser cleaner and clean the lens to maintain optimal performance for future use. Regular maintenance will extend the lifespan of your machine and ensure consistent results over time.
A pulsed laser cleaner is a powerful tool for removing rust, paint, and contaminants with precision, but improper usage can lead to inefficiency or even damage. To maximize performance and ensure safety, avoid these common mistakes that can impact the cleaning process and machine longevity.
• Using the Wrong Laser Settings: Different materials require different power levels and pulse frequencies. Using too much power can damage the substrate, while too little may leave residues and require multiple passes.
• Skipping a Test Patch: Jumping straight into full-scale cleaning without testing a small area 1st can lead to unintended results. A test patch helps determine the ideal settings and prevents potential damage.
• Moving the Laser Too Fast or Too Slow: Moving too quickly can result in incomplete cleaning, while moving too slowly may cause excessive heat buildup. Maintaining a steady and controlled pace ensures even and effective contaminant removal.
• Ignoring Proper Safety Measures: Failing to wear laser safety goggles or operate in a controlled environment can pose serious risks. Always follow manufacturer guidelines to protect yourself and those around you.
• Neglecting Regular Maintenance: Dust and debris can accumulate on the lens and cooling system, reducing laser efficiency. Regularly clean and inspect components to ensure optimal performance and prevent costly repairs.
• Not Adjusting for Surface Type: Some surfaces are more sensitive to heat and require lower laser intensity. Always adjust settings based on the material type to prevent discoloration or structural weakening.
• One-year limited warranty, any parts damaged (excluding man-made damage) will be replaced free of charge.
• STYLECNC provides you with lifetime technical support through calls, emails, and online services. Our technicians can troubleshoot for you through remote guidance.
• An instruction video is included to help you setup, debug and operate the laser cleaner step by step.
• Free online training, overseas door-to-door service is available (STYLECNC charges the technician's round-trip catering, travel expenses and some additional fees).
• The machine is shipped and delivered after debugging, and comes with an easy-to-use operation manual.
This laser cleaner is plug and play and works great in my auto repair shop. It fires a laser beam and ablates the rust, leaving the part surface clean in seconds. I appreciate its precision as it can target specific areas without damaging the substrate. Im impressed by the multiple cleaning modes for different cleaning purposes. Expect better and stable performance. Anyway, long story short, its a great value for those looking for a cleaner, safer, and more efficient cleaning tool.
